Elliot Hospital Critical Emergency Power:

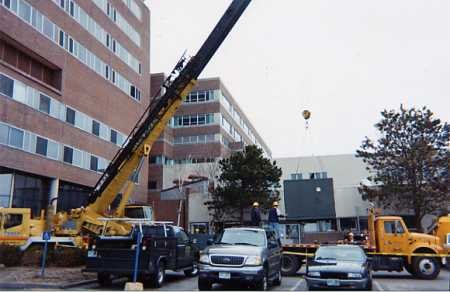

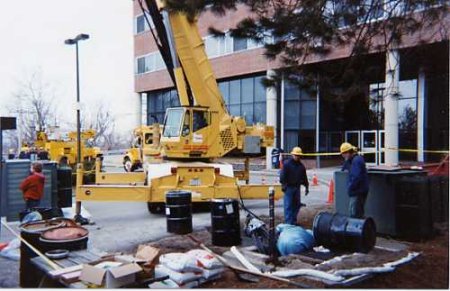

15.5 KV Transformer Replacement

This work was done with coordination from Public Service of NH.

Scope of Work:

  • De-energize 5KV high voltage disconnect and confirm emergency back up
  • Disconnect 24-600 mcm secondary feeders at existing transformer
  • Assist PSCO in removing existing transformer and installation of new unit
  • Disconnect, remove, and install new high voltage cable from transformer to 5KV switchgear
  • Disconnect, remove, and install new high voltage cable from 15 KV transformer to 480v transformer
  • Provide 12-1/2" x 6" x 18" solid copper buss bars to extend new transformer stabs
  • Reinstall existing lugs
  • Provide 24-600 mcm terminations
  • Energize new transformer and test

Excerpt from Letter of Appreciation from Elliot Hospital, Director of Facilities Management...

"I would like to take this opportunity to thank you for your support and cooperation during the electrical shut-down and replacement of a critical electrical transformer we recently experienced. The complex nature of this process could not have been done smoothly if it were not for your timely response and willingness to have this task completed in such a short timeframe.

Being able to accomplish this procedure so quickly without overly affecting patient care is largely due to the team effort between your crew and our technicians. Your assistance is greatly appreciated."
